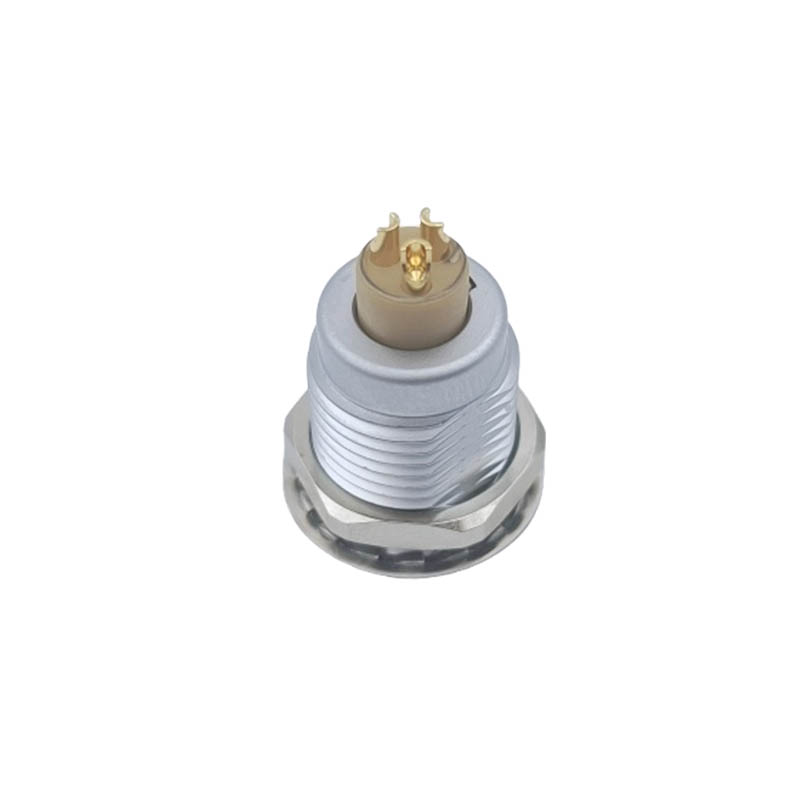

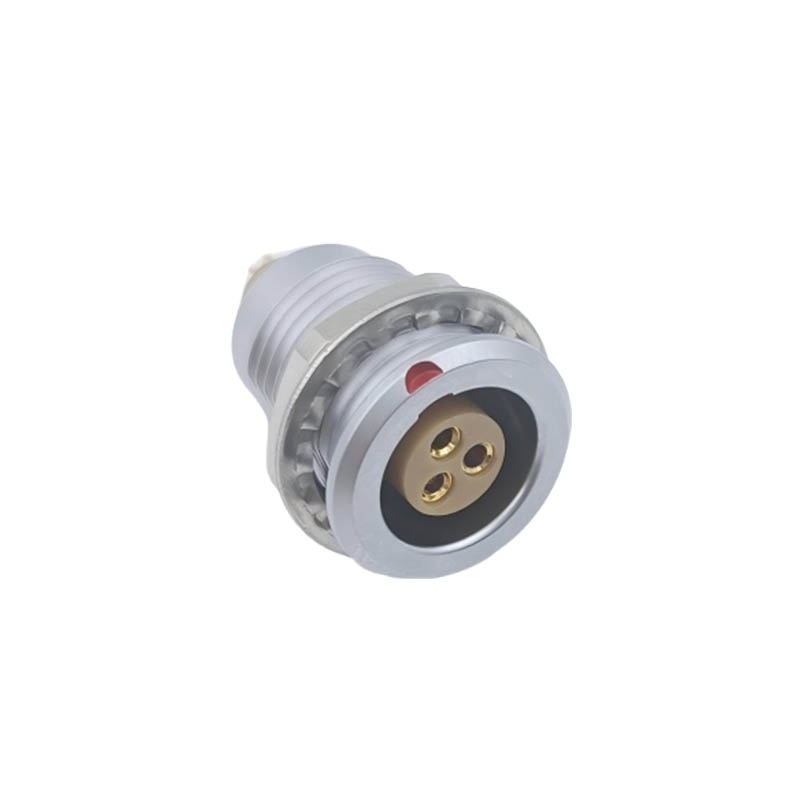

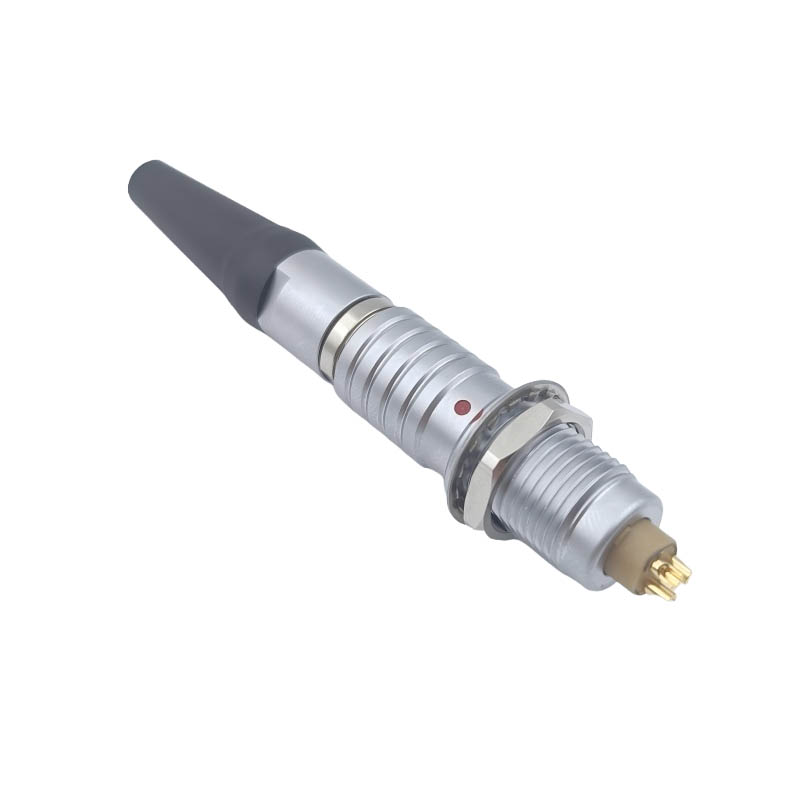

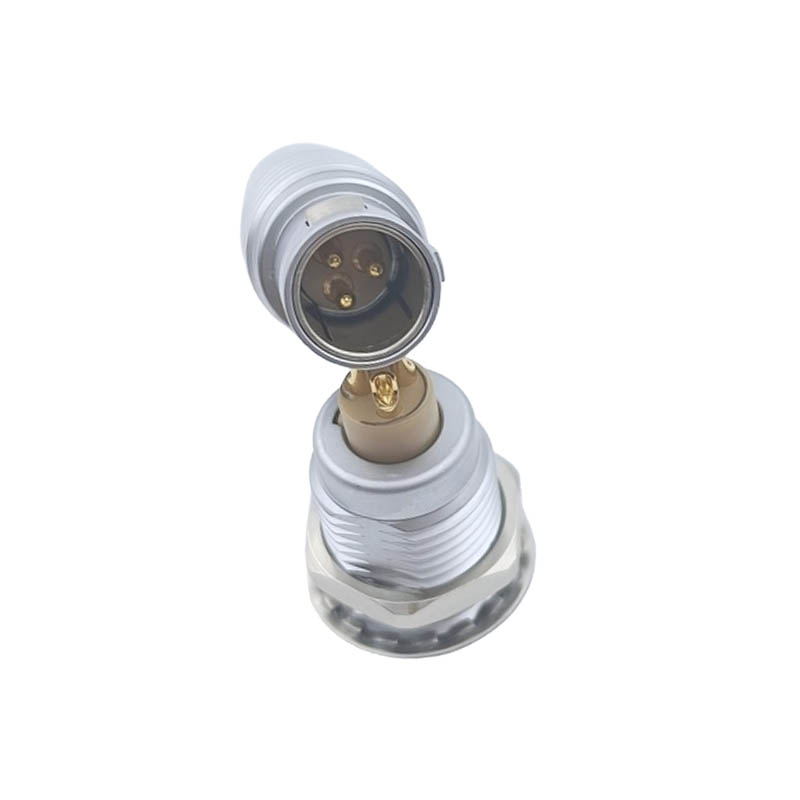

B Series 1B 3 Pin Plug And Socket

Application Scenarios:
1. Electrosurgery Equipment: Mixed signal inputs, excellent RFI/EMI shielding performance.
2. Pacemakers and Hearing Aids: Compact, lightweight, and reliable connection to external modules and battery packs.
3. Input Devices: Multi-core and mixed (low/high voltage, or coaxial) configurations for power and signal applications.
4. Robotics: The perfect choice (reliable and long-lasting) for high-speed mobile and automated system connections.
5. High-voltage Testing: Comprehensive protection measures (locking ring, positioning markers, internal switch), simple plug-in and unplug, and rugged reliability.
6. Quality Control: Multi-core and mixed (low/high voltage, coaxial) contact configurations save connection space and reduce the number of connectors.
7. Communications and Control: Rugged, reliable, blind-mate, and mixed high-voltage, coaxial, and fiber optic configurations save panel space and plug-in time.

Consult

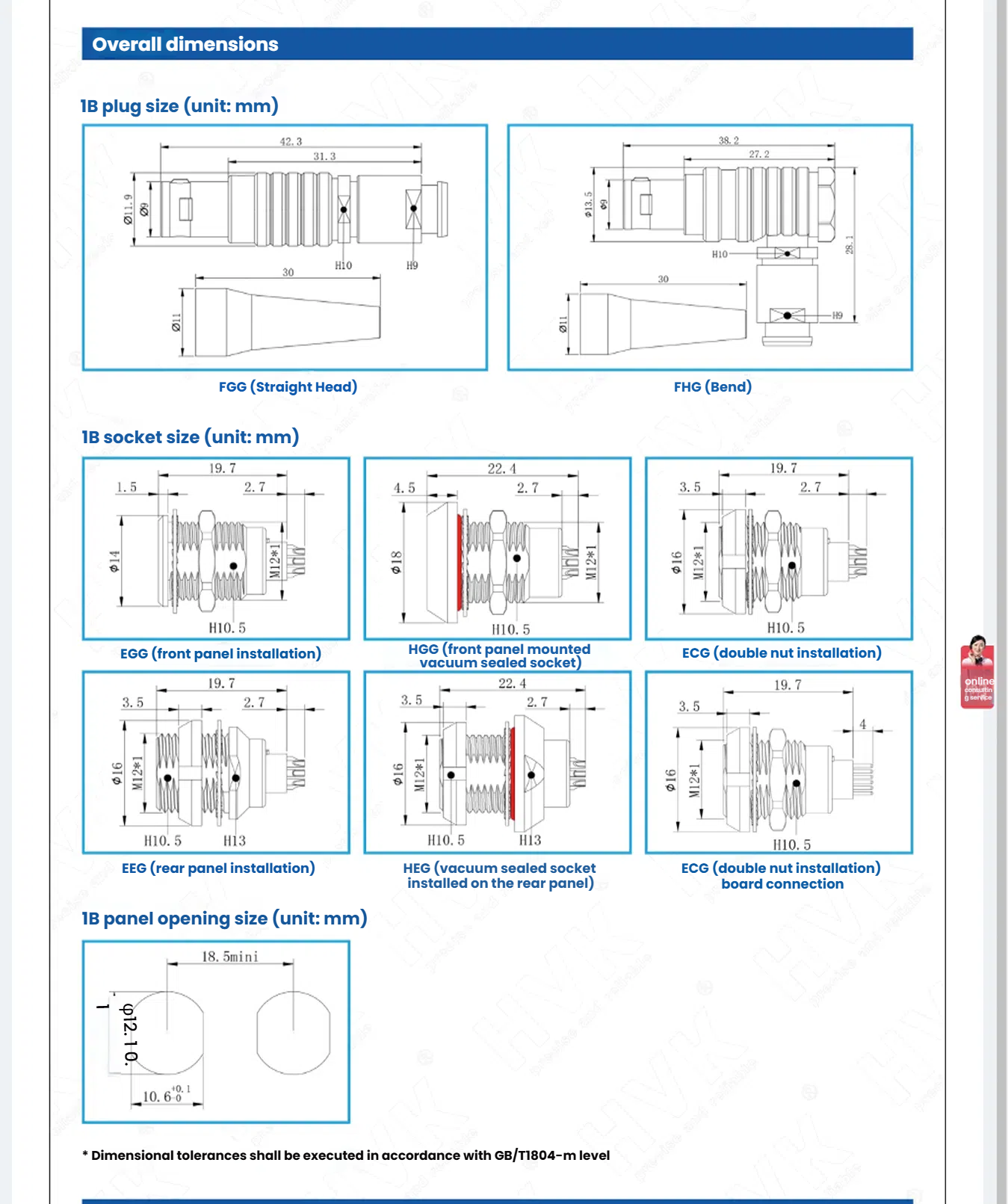

Features Technical Indicators Overall Dimension

1. Available in multiple (2-16) contact configurations with mixed contact types (pneumatic, coaxial, high-voltage, and high-current). Self-locking plug-in design allows for quick connection between plugs and receptacles.
2. Reliable connection, high-quality, high-density contacts, and space-saving installation. Compatible with similar products such as LEMO and ODU, the connector is fully interoperable.
3. Spring-clip locking with single or multi-key options prevents cross-mating of similar connectors.
4. The metal housing is made of copper alloy with a chrome or nickel plating, and the contacts are made of copper alloy with a gold plating. They are environmentally resistant and can withstand over 5,000 continuous plug-in and unplug cycles with stable contact resistance.
5. Welding and forming of the cable harness are available. Custom specifications are also available. Widely used in medical, industrial control, broadcast communications, aerospace, and military applications.

Product Specifications
Contact configuration	2 to 16 cores (optional)
Contact type	A soldering pin/L soldering jack/N board-to-straight jack/V board-to-bend jack/D board-to-straight pin (optional)
Needle core material	Copper alloy gold plating (optional)
Insulation materials	PPS/PEEK (optional)
Shell material	C Brass chrome plating / K Brass black chrome plating / N Brass nickel plating / T Stainless steel / L Aluminum alloy anodizing (optional)
Shell color	Silver/Black (optional)
Sheath color	N black / G gray / A blue / R red J yellow / V sheath color green (optional)
Cable diameter	ø3.0~ø6.8 (optional)
*Material, shape, surface treatment and color can all be customized
Performance parameters
Number of plugging and unplugging times	>5000 times
Operating temperature	-40℃~+150℃
relative humidity	60℃时，93RH±2%
Protection level	IP50
Salt spray test	>144H
Vibration test	10～2000HZ,15g
Impact testing	100g,6ms
Shielding test	10M Hz	75dB
	1G Hz	40dB
Insulation resistance	>5000MΩ
